Meadow Ridge Elementary: Structural Engineering for Modern School Design

Project Overview

BKBM provided structural engineering services for a new two-story elementary school in the Wayzata School District, Plymouth, MN. The project features a 44,000-square-foot lower level, a 35,000-square-foot main level, a mechanical penthouse, and an expansive two-story gymnasium, totaling 79,000 square feet.

Project Highlights

  • Modern Educational Design:
    • Two-level facility with dedicated mechanical penthouse and large, two-story gymnasium space for student fitness and activities.
    • Lower and main levels offer flexible learning spaces to support evolving educational needs.
  • Efficient Structural Systems:
    • Roof structure composed of steel beams supporting K-series joists and metal roof deck for durability and performance.
    • Floors constructed with precast concrete plank and non-composite concrete topping, spanning to steel beams.
    • Steel tube columns and exterior masonry walls support all primary framing.
  • Lateral and Specialty Engineering:
    • Masonry shear walls surround the building perimeter to provide robust lateral stability.
    • Steel braced frames at the penthouse structure enhance resistance to wind and seismic forces.
    • Specifically engineered to address a full-story unbalanced soil load against the building in the northwest corner.
  • Architectural Features:

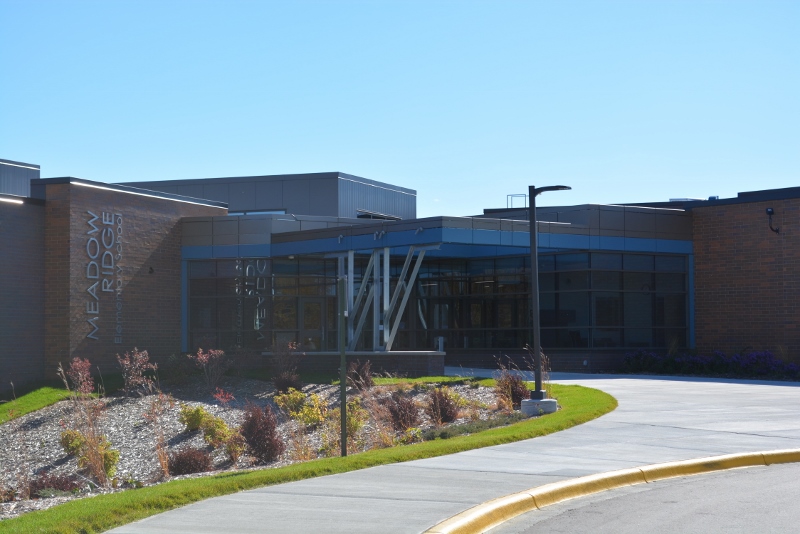

    • Integration of Architecturally Exposed Structural Steel (AESS) at the main entry, forming a signature “W” that supports a cantilevered canopy and adds visual distinction.

Engineering Solutions

BKBM responded to complex soil and load demands with advanced lateral and foundation engineering. Customized AESS detailing delivered both structural performance and architectural expression at the school entrance. The use of precast and steel systems facilitated efficient construction and long-term building flexibility.

Results & Impact

The newly completed elementary school offers a safe, inspiring, and adaptable environment for teaching and learning within the Wayzata School District. BKBM’s structural engineering solutions ensure durability, resilience, and an iconic entrance—creating a welcoming hub for generations of students.
